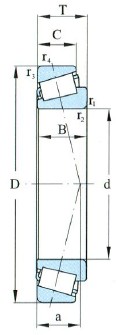

Drawing
Parameter
| Dimansion mm |
| d | 41.275 |
| D | 80.000 |
| T | 18.009 |
| B | 17.384 |
| C | 14.288 |
| r 1,2 min | 1.5 |
| r 3,4 min | 1.5 |
| Load ratings kN |
| Cr | 44.6 |
| Cor | 52.4 |
| Weight(Kg) |
| Weight(Kg) | 0.3890 |
| Limiting Speed r/min |
| Grease | 4900 |
| Oil | 6500 |

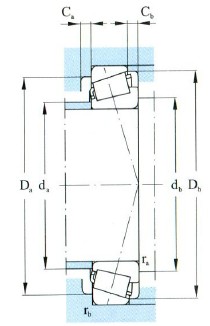

| Fitting dimansion mm |
| d a max | 46.5 |
| d b max | 49.0 |
| D a max | 69.0 |
| D a min | 68.0 |
| D b min | 73.0 |
| C a min | 3.5 |
| C b min | 4.0 |
| r a max | 1.5 |
| r b max | 1.5 |
| Calculation coefficient |
| e | 0.49 |
| Y | 1.23 |
| Yo | 0.68 |
| Designation Assembles/Outer Ring |
| Designation Assembles/Outer Ring | 11162/11315 |
Details
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-11162/11315-Tapered Roller Bearing，Relevant information of FM-11162/11315-Tapered Roller Bearing includes： Designation: 11162/11315 d:41.275 D:80.000 B:17.384 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-11162/11315-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-11162/11315-Tapered Roller Bearing is widely used.FM-11162/11315-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-11162/11315-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
