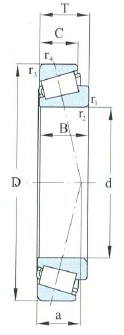

Drawing
Parameter
| Dimansion mm |
| d | |
| D | 215 |
| T | 51.50 |
| B | 47.0 |
| C | 39.0 |
| r 1,2 min | 4.0 |
| r 3,4 min | 3.0 |
| Load ratings kN |
| Cr | 420.0 |
| Cor | 503.0 |
| Designation |
| Designation | 30320 |
| Weight(Kg) |
| Weight(Kg) | 8.3300 |
| Limiting Speed r/min |
| Grease | 1700 |
| Oil | 2400 |

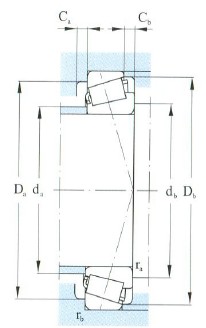

| Fitting dimansion mm |
| d a max | 121.0 |
| d b max | 114 |
| D a max | 201 |
| D a min | 184 |
| D b min | 197.0 |
| C a min | 7 |
| C b min | 12.5 |
| r a max | 2.5 |
| r b max | 2.5 |
| Calculation coefficient |
| e | 0.35 |
| Y | 1.70 |
| Yo | 0.900 |
| ISO355 Dimensions |
| ISO355 Dimensions | 2GB |
Details
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-30320-Tapered Roller Bearing，Relevant information of FM-30320-Tapered Roller Bearing includes： Designation: 30320 d: D:215 B:47.0 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-30320-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-30320-Tapered Roller Bearing is widely used.FM-30320-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-30320-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
