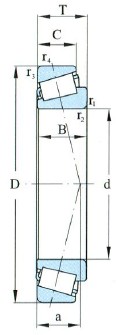

Drawing
Parameter
| Dimansion mm |
| d | 104.775 |
| D | 180.975 |
| T | 47.625 |
| B | 48.006 |
| C | 38.100 |
| r 1,2 min | 3.5 |
| r 3,4 min | 3.3 |
| Load ratings kN |
| Cr | 259 |
| Cor | 368 |
| Weight(Kg) |
| Weight(Kg) | 4.6700 |
| Limiting Speed r/min |
| Grease | 1800 |
| Oil | 2600 |

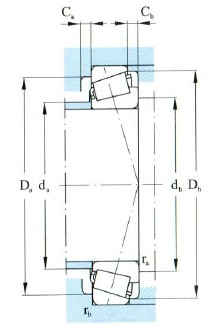

| Fitting dimansion mm |
| d a max | 118.0 |
| d b max | 117.5 |
| D a max | 167.5 |
| D a min | 152.0 |
| D b min | 166.0 |
| C a min | 7.0 |
| C b min | 9.5 |
| r a max | 3.0 |
| r b max | 3.0 |
| Calculation coefficient |
| e | 0.40 |
| Y | 1.50 |
| Yo | 0.80 |
| Designation Assembles/Outer Ring |
| Designation Assembles/Outer Ring | 782/772 |
Details
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-782/772-Tapered Roller Bearing，Relevant information of FM-782/772-Tapered Roller Bearing includes： Designation: 782/772 d:104.775 D:180.975 B:48.006 Brand:FM Type:Tapered Roller Bearing ，Want to know more about FM-782/772-Tapered Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-782/772-Tapered Roller Bearing is widely used.FM-782/772-Tapered Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-782/772-Tapered Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
