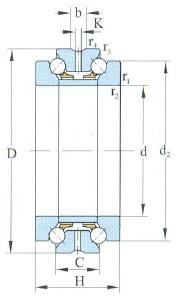

Drawing
Parameter
| Dimansion mm |
| d | 165 |
| D | 240 |
| H | 96 |
| r 1,2 min | 2.1 |
| r 3.4 min | 0.60 |
| Load ratings kN |
| Cr | 172.00 |
| Cor | 543.9 |
| Limiting Speed r/min |
| Grease | 1600 |
| Oil | 2200 |
| Dimansion mm |
| B | 24.0 |
| C | 48 |
| d 2 | 212.0 |
| K | 6.0 |
| b | 14 |

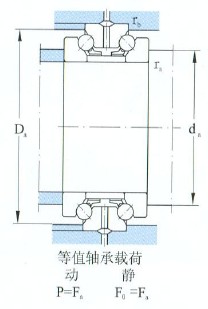

| Fitting dimansion mm |
| d a min | 190.0 |
| D a max | 227.0 |
| r a max | 2.0 |
| r b max | 0.60 |
| Designation |
| Designation | 234732BM1 |
| Weight(Kg) |
| Weight(kg) | 12.6000 |
Details
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-234732BM1-Special machine tool bearing，Relevant information of FM-234732BM1-Special machine tool bearing includes： Designation: 234732BM1 d:165 D:240 B:96 Brand:FM Type:Special machine tool bearing ，Want to know more about FM-234732BM1-Special machine tool bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-234732BM1-Special machine tool bearing is widely used.FM-234732BM1-Special machine tool bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-234732BM1-Special machine tool bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
