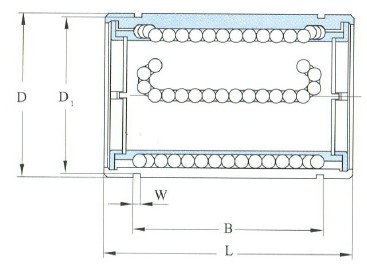

Drawing
Parameter
| Designation |
| HRB | ZXt203245KA |
| International No. | LB2032450PTN |
| Principal dimensions (mm) Tolerance(μm) |
| d Nominal | 20 |
| d Tolerance | +9 -1 |
| D Nominal | 32 |
| D Tolerance | 0 -11 |
| L Nominal | 45 |
| L Tolerance | 0 -250 |
| B Nominal | 31.5 |
| B Tolerance | 0 -200 |
| W | 1.6 |
| D 1 | 30.3 |
| h | |
| h 1 | 10 |
| θ | 60° |
| Dynamic load rating (N) C |
| min | 558.6 |
| max | 823.2 |
| Static load rating (N) C |
| min | 970.2 |
| max | 1470 |
Details
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-LB2032450PTN-Linear motion ball bearing，Relevant information of FM-LB2032450PTN-Linear motion ball bearing includes： Designation: LB2032450PTN d:20 D:32 B:31.5 Brand:FM Type:Linear motion ball bearing ，Want to know more about FM-LB2032450PTN-Linear motion ball bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-LB2032450PTN-Linear motion ball bearing is widely used.FM-LB2032450PTN-Linear motion ball bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-LB2032450PTN-Linear motion ball bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
