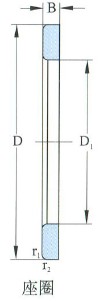

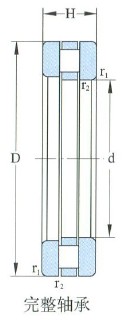

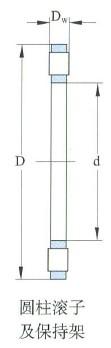

Drawing
Parameter
| Principal dimensions mm |
| d | 260 |
| D | 320 |
| T | 45 |
| Dimansion mm |
| d 1 | 317 |
| D 1 | 263 |
| D w | 18 |
| B | 13.5 |
| r 1,2min | 1.5 |
| Basic load ratings kN |
| Cr | 490 |
| Cor | 2600 |
| Limiting Speed rpm |
| Grease | 400 |
| Oil | 530 |
| Designation |
| Complete Bearing | 81152 |
| Rollers and Cages | K81152 |
| Shaft Washer | WS81152 |
| Housing Washer | GS81152 |
| Fitting dimansion mm |
| d amin | 316 |
| D amax | 268 |
| r amax | 1.5 |
Details
Wuxi Bosu Transmission Equipment Co., Ltd.specializes in selling FM-K81152-Thrust Cylindrical Roller Bearing，Relevant information of FM-K81152-Thrust Cylindrical Roller Bearing includes： Designation: K81152 d:260 D:320 B:45 Brand:FM Type:Thrust Cylindrical Roller Bearing ，Want to know more about FM-K81152-Thrust Cylindrical Roller Bearing You can consult online or call the hotline, we will provide you with detailed service.
FM-K81152-Thrust Cylindrical Roller Bearing is widely used.FM-K81152-Thrust Cylindrical Roller Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of FM-K81152-Thrust Cylindrical Roller Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
